Meshtastic Node Wio Tracker L1 LoRa Wio-SX1262 862-930MHz 868MHz 915MHz NRF52840 L76K GPS,Wireless, Low-power, Development Board

$34.88 USD

~~$0.00 USD~~ $34.88 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

SPECIFICATIONS

Accessory Type: LCD Screen

Battery Included: Yes

Brand Name: seeed studio

Compatible With: Wio Tracker L1 Pro

Hign-concerned Chemical: None

Origin: Mainland China

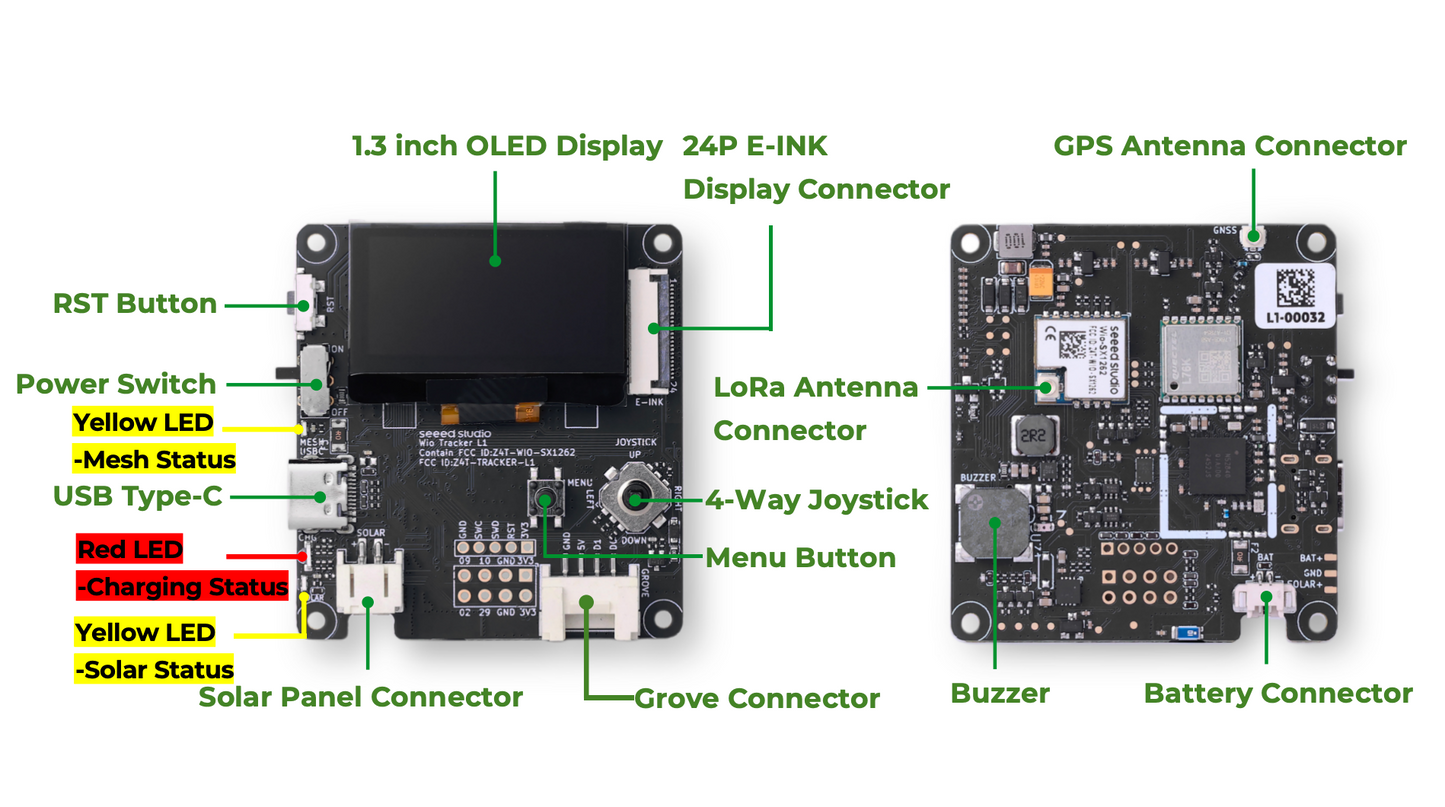

The Wio Tracker L1 Series is a low-power, scalable Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 for efficient processing, and an L76K GPS for precise location tracking.

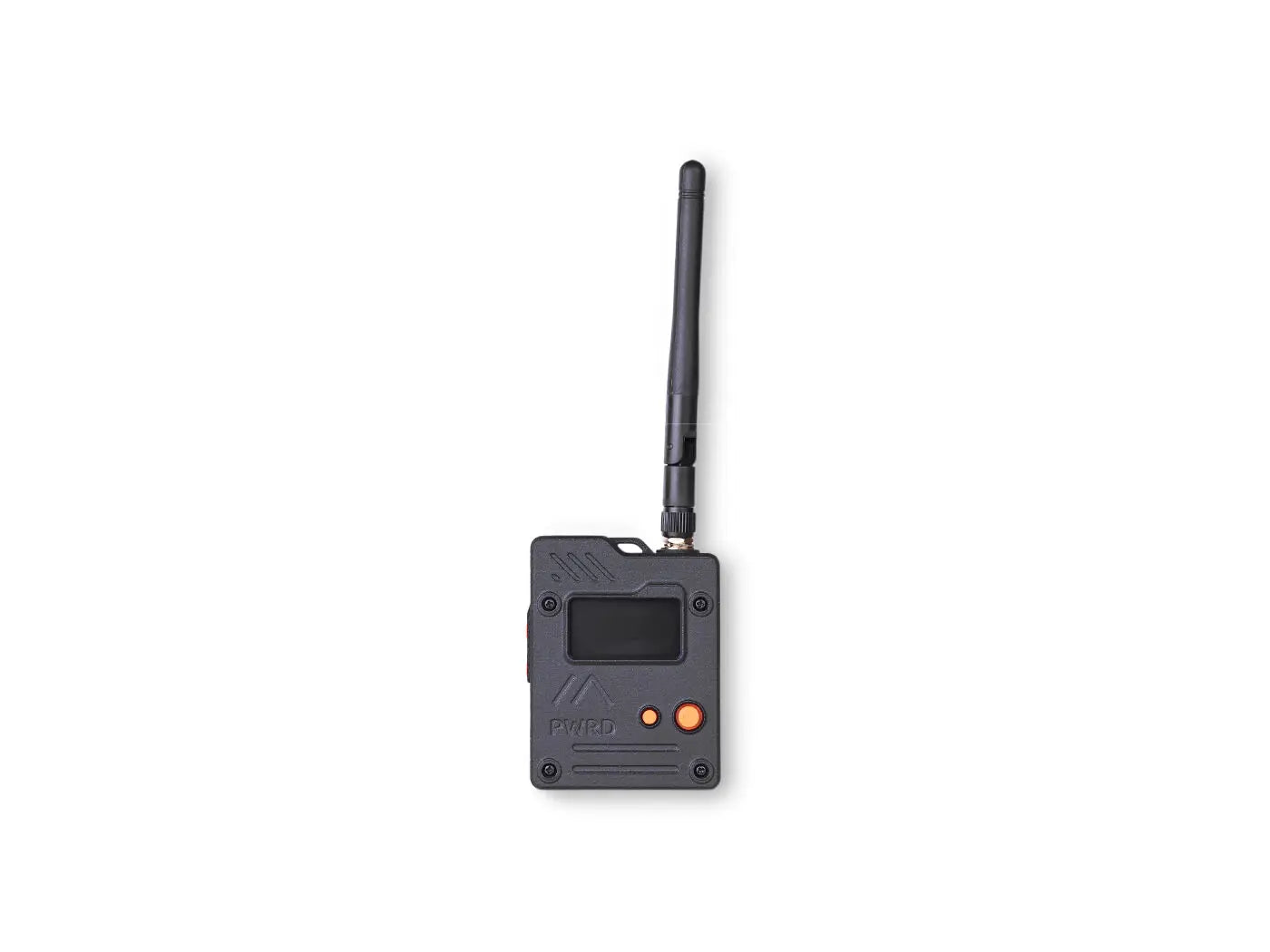

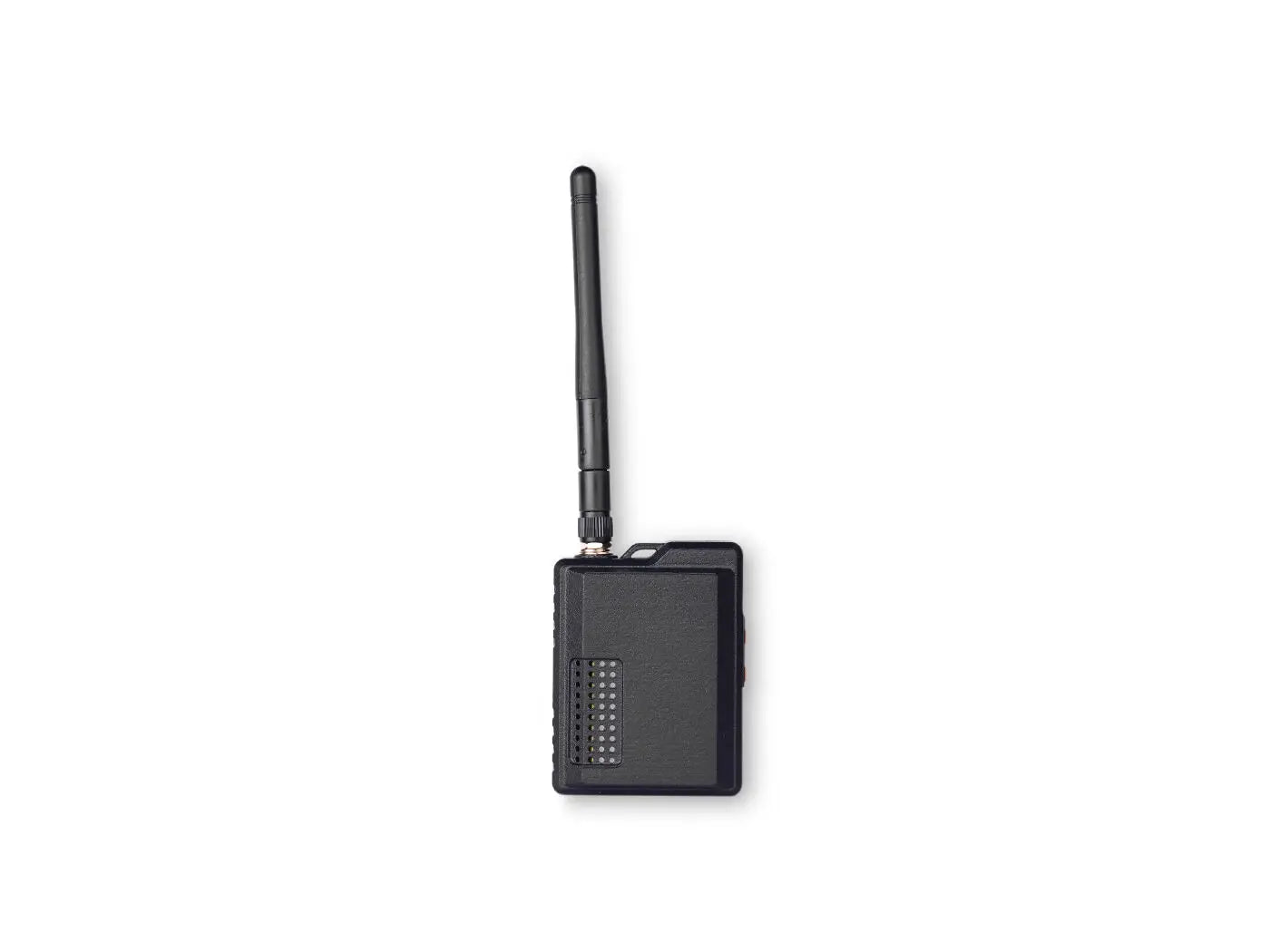

The L1 Pro version is a fully integrated, ready-to-deploy solution featuring an OLED display, rechargeable battery, and durable 3D-printed enclosure. Built for field use with no assembly required.

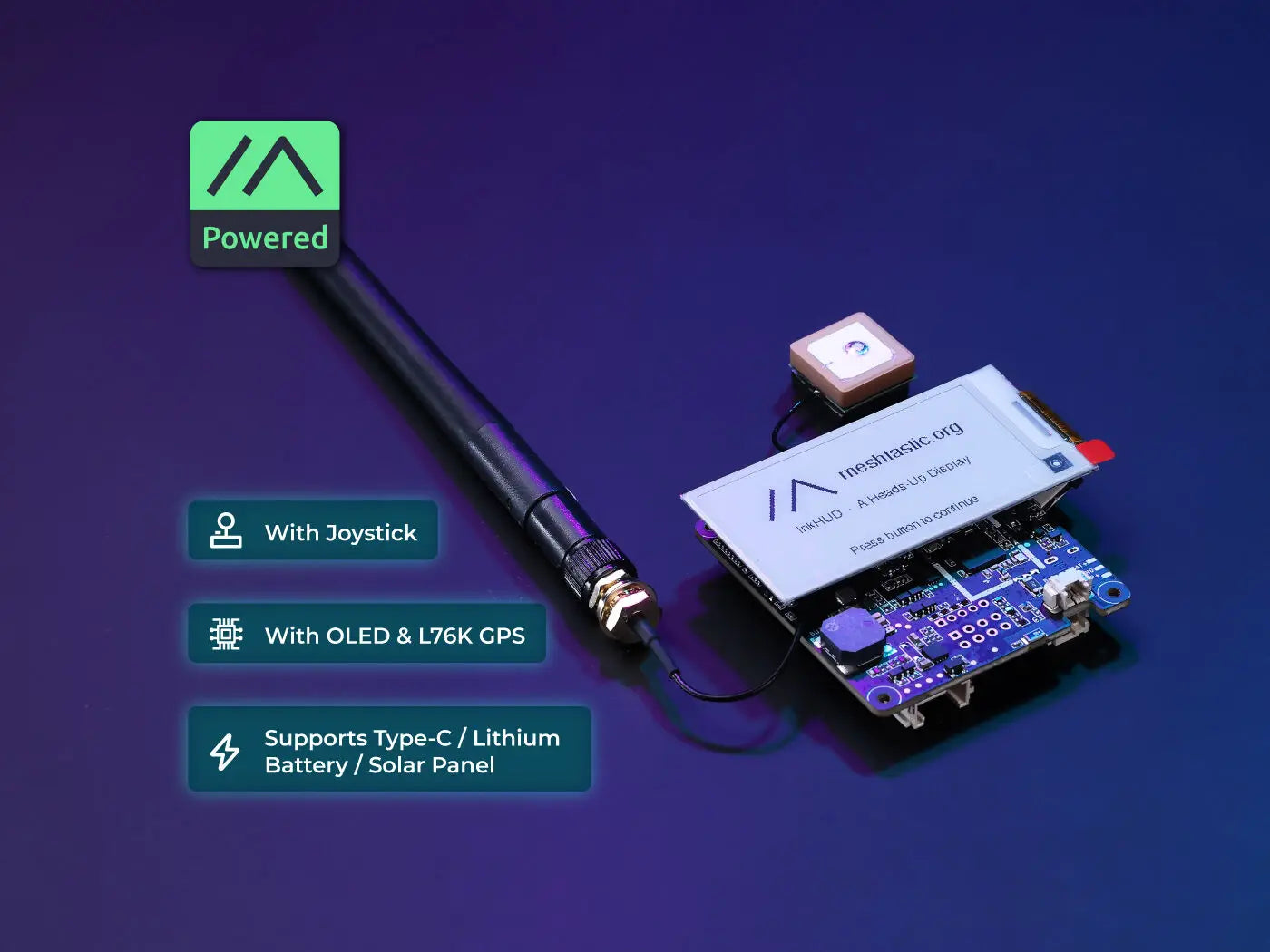

The L1 E-ink version supports a detachable E-ink display — optimized for ultra-low-power, always-on visual updates. Ideal for digital signage, asset tracking.
The L1 version comes with an 1.3 inch OLED status panel for real-time feedback and system monitoring.
The L1 Lite version is a compact and minimalist development board — perfect for embedded integration and advanced customization.

Feature

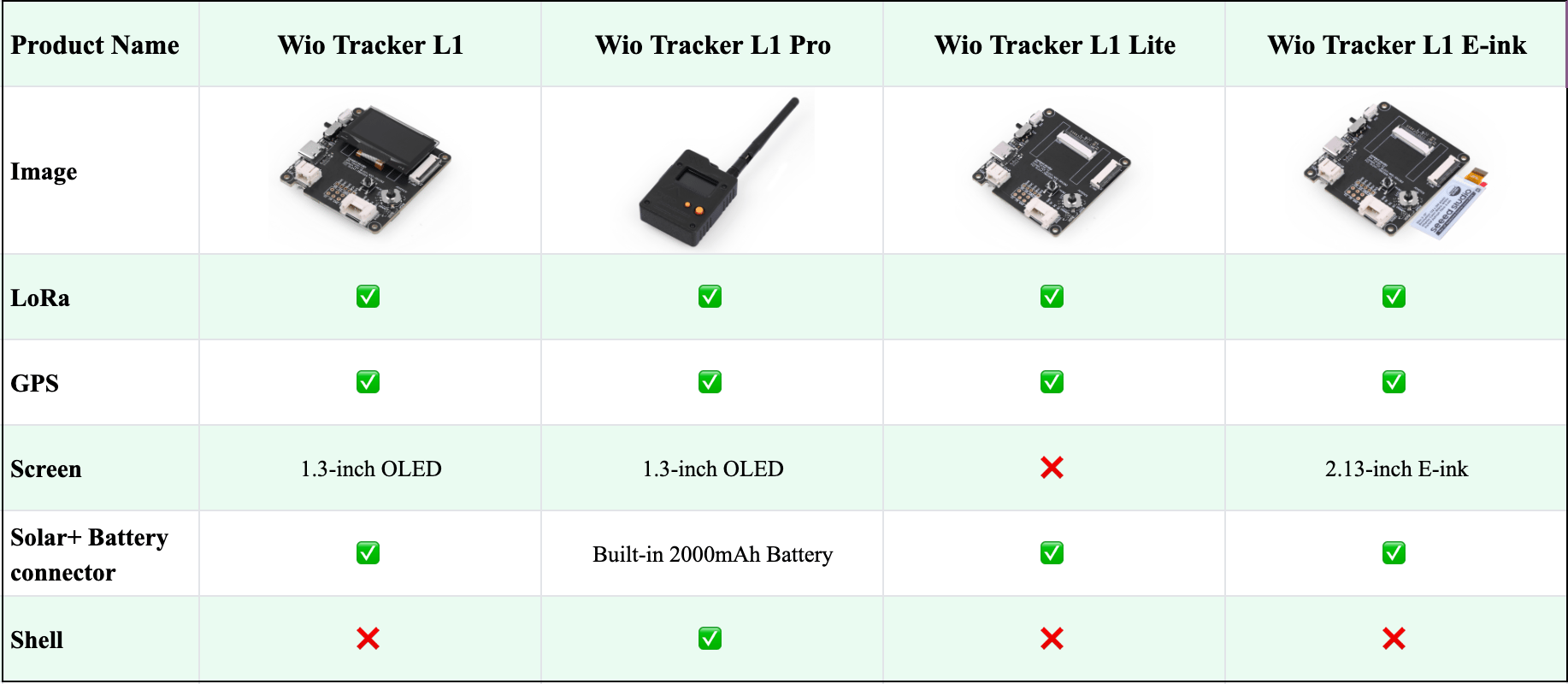

Note: The Wio Tracker L1 Series is available in four versions—choose the one that best fits your needs.

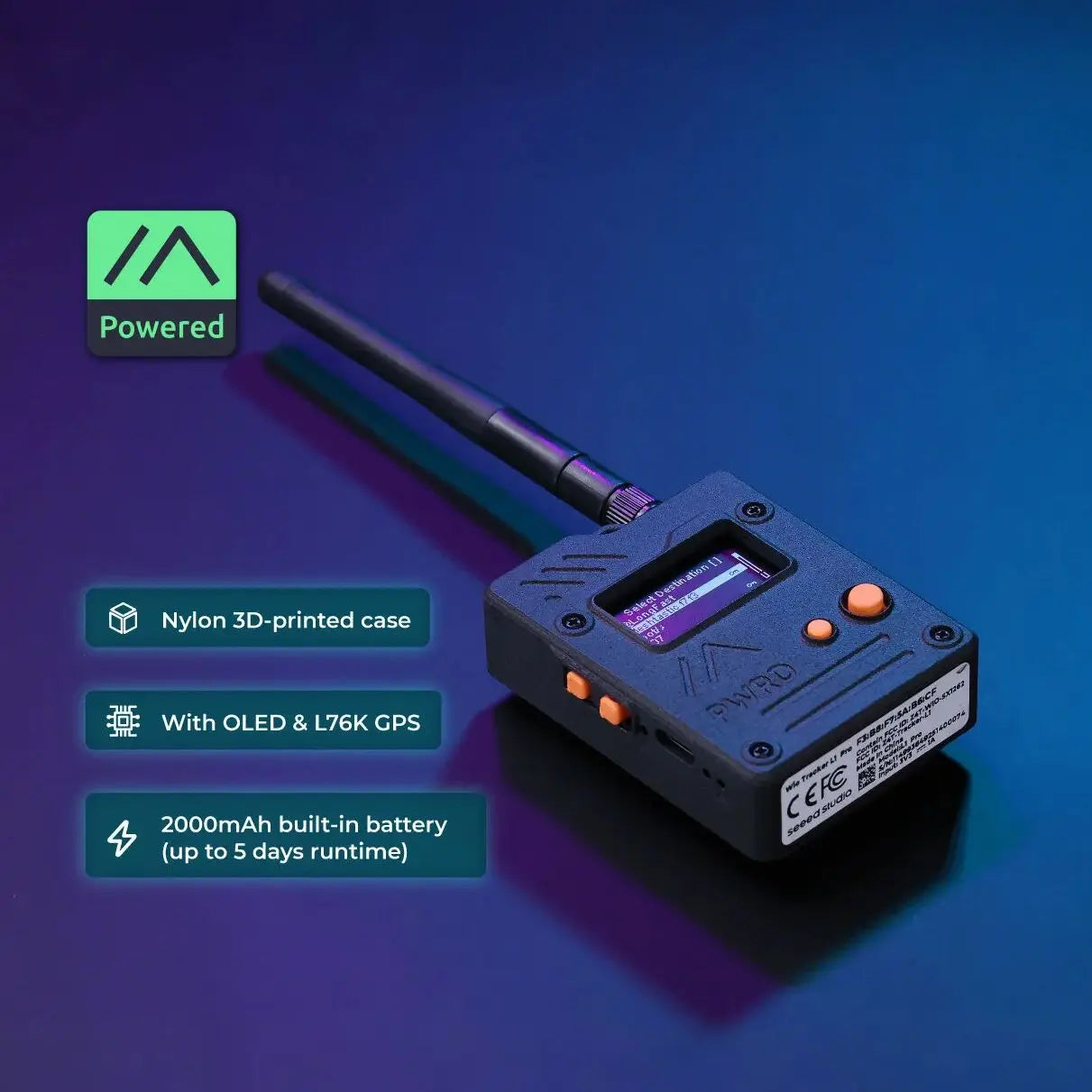

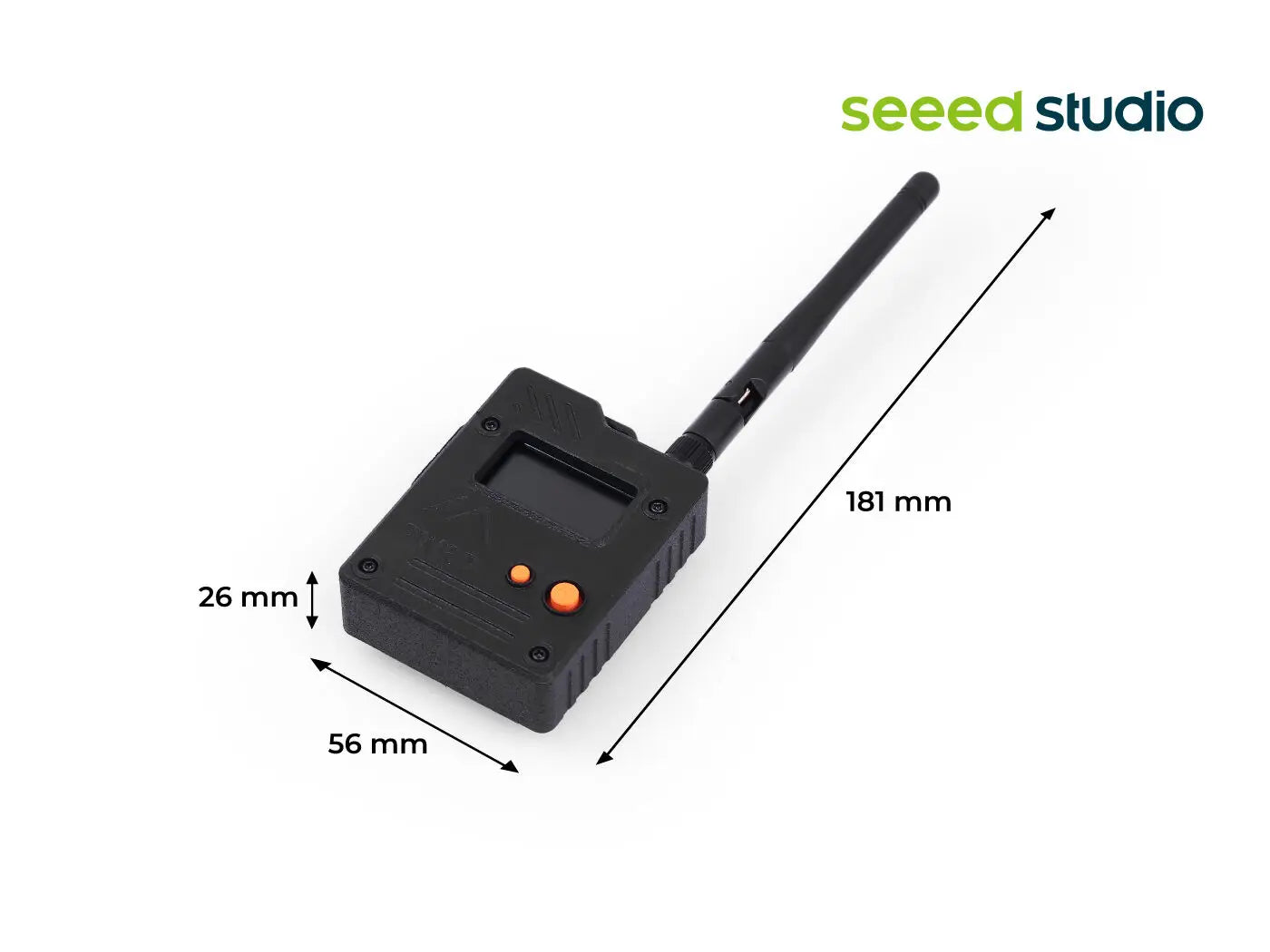

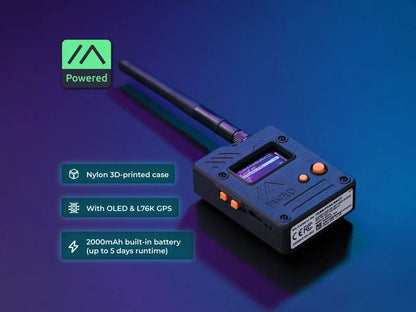

Ready-to-Use 3D-Printed Enclosure

The L1 Pro comes with a rugged, lightweight 3D-printed enclosure designed for immediate use—no additional assembly needed. Whether handheld or clipped onto gear, it’s built for adventure in any environment.

Pre-flashed with Meshtastic firmware

Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.

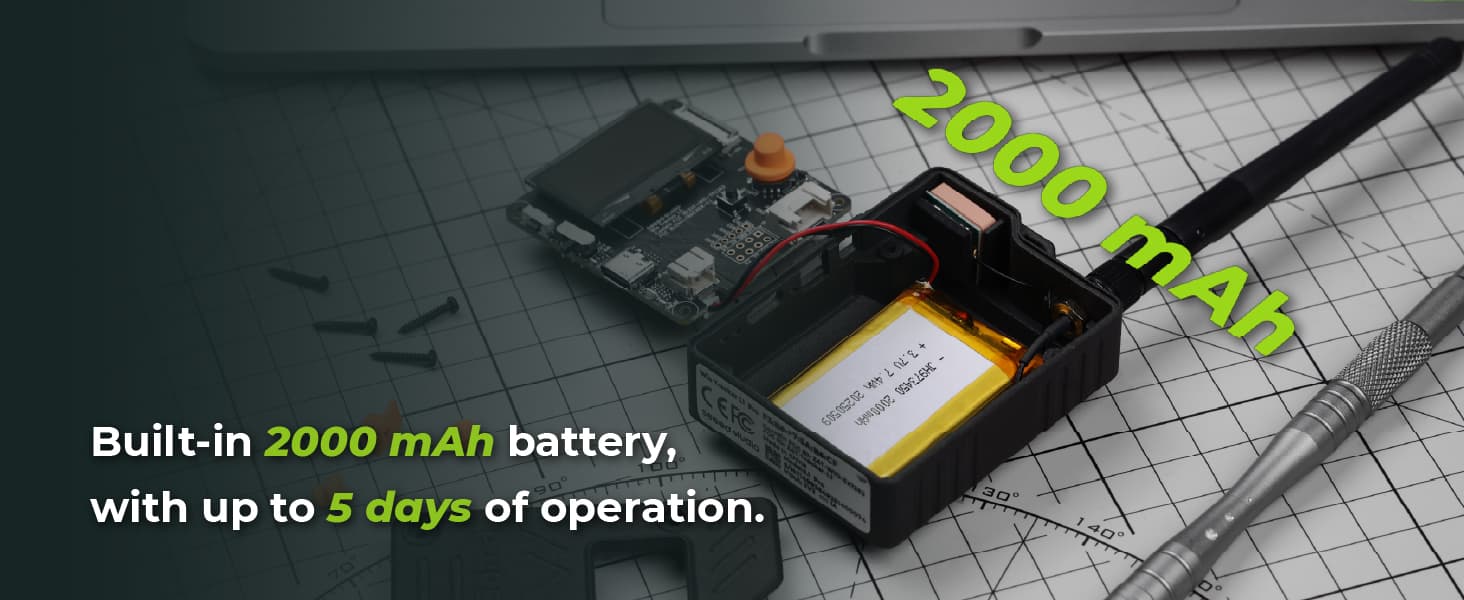

Triple Power Supply Options

Equipped with a built-in 2000 mAh battery, Type-C fast charging, and solar input support, enabling flexible deployment in diverse environments—perfect for outdoor and mobile use.

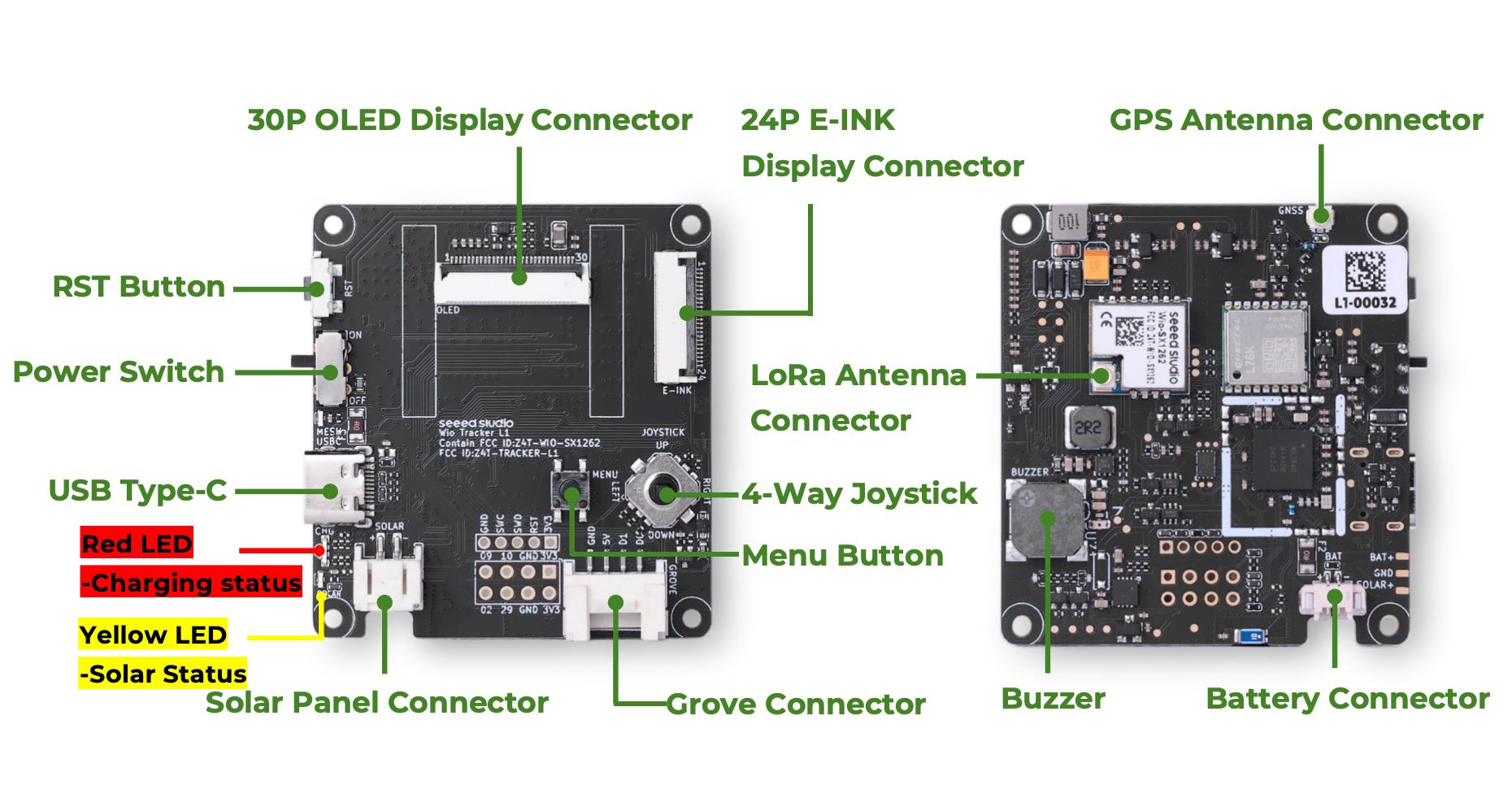

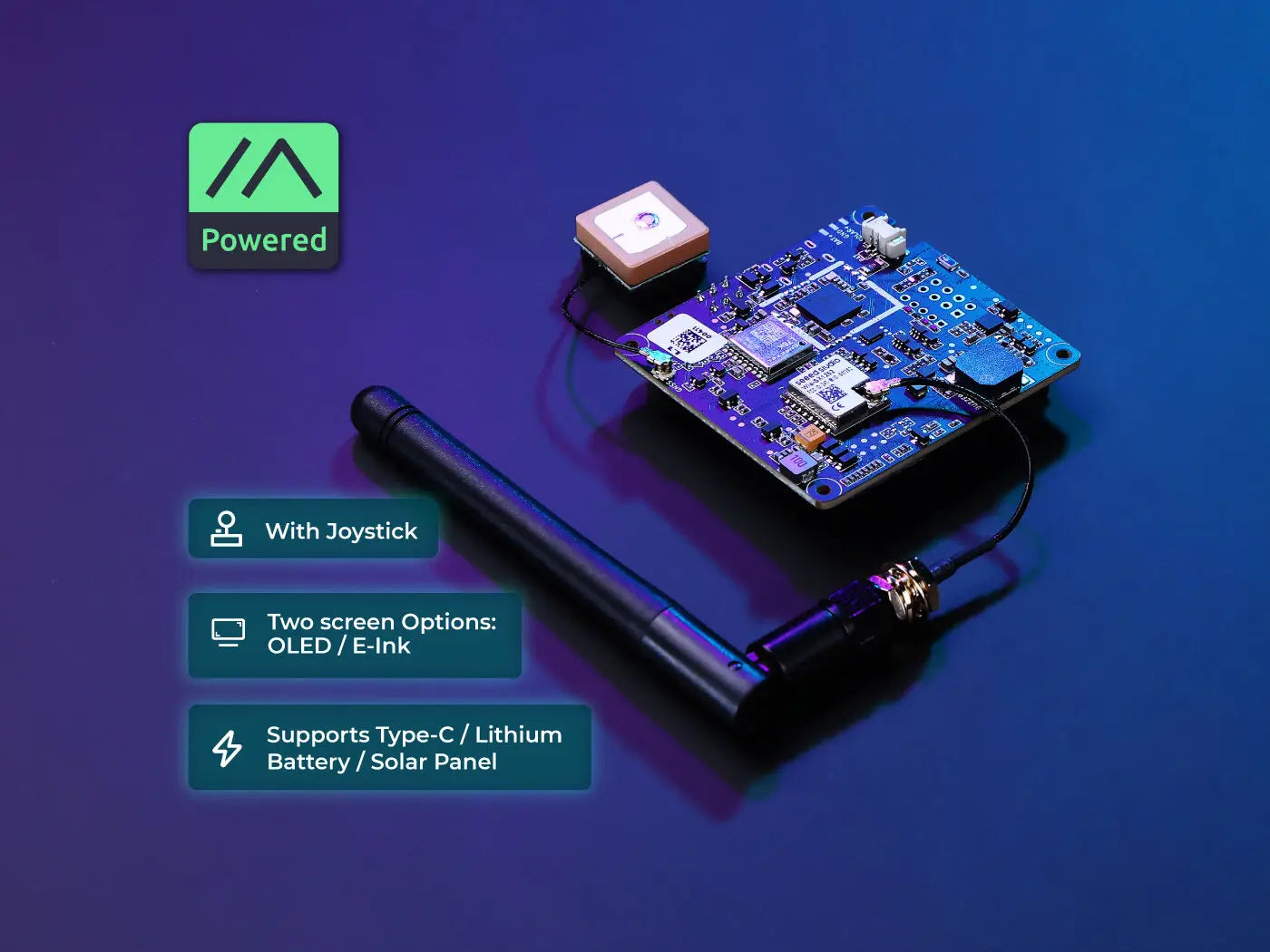

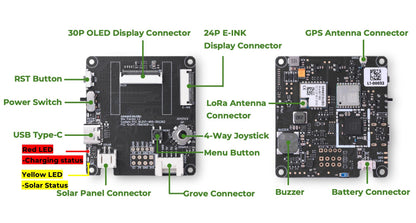

High Expandability

Fully compatible with the Grove ecosystem, and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.

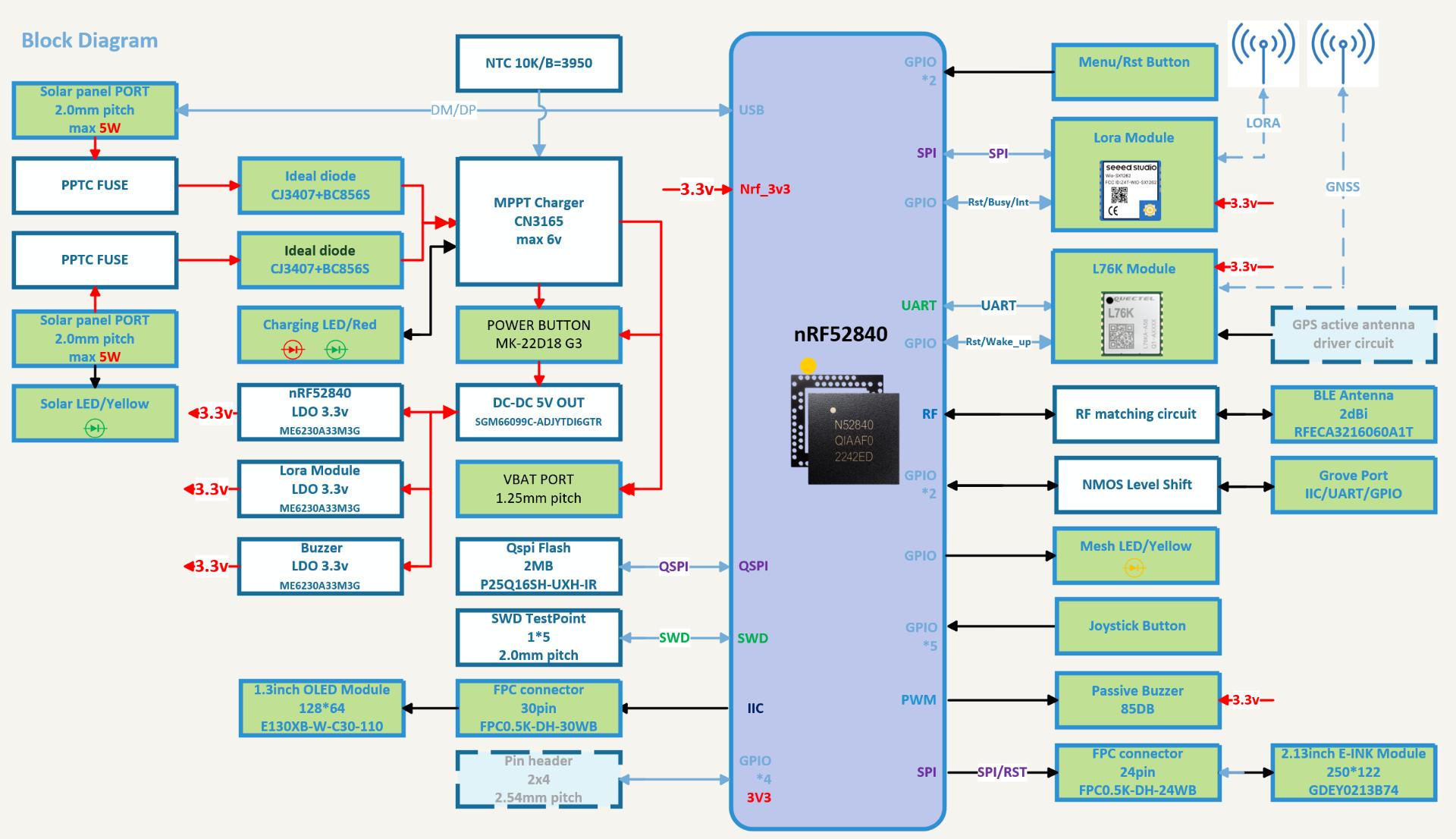

Specification

Processor	Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz
On-chip Memory	1 MB flash and 256 kB RAM
Wireless	LoRa: Based on Wio-SX1262, supports 862-930MHz
Wireless	Bluetooth 5.0
GPS	L76K(GPS,BeiDou,GLONASS,QZSS)
OLED Display	Size: 1.3 inch
	Resolution: 128*64 pixels
	Active Area(mm): L34.5W23.0H1.47
Power	Type-C: 5v---1A
	Solar energy interface: 5v---1A
	Battery interface: 3.7v---1A
Certification	FCC, CE, RoHS
