Overview

Key Features

1. High-Performance Hardware Combo

• Processor: AMD Ryzen 9 7940HX (Zen 4 architecture, 5nm manufacturing process, 16 cores, 32 threads, up to 5.2GHz boost clock, 64MB L3 cache). With optimized performance design, it achieves stronger sustained performance release and excellent energy efficiency.

• Graphics Card: AMD Radeon RX 7600 XT dedicated graphics card (noted as "desktop-grade" in original info) with 8GB 128-bit GDDR6 VRAM, 2048 stream processors, 2755MHz core boost frequency, and 150W full-power design. Its performance is stronger than the GeForce RTX 4060 (mobile version).

2. Advanced Cooling System

• Features the exclusive "Glacier Gaming 4.0" Cooling System. The open-layout mecha design enhances overall airflow and reduces operating noise, ensuring core components stay cool even during intense use.

• Equipped with a new 9015 cooling fan: the fan blade material is lighter, and the number of fan blades is significantly increased to deliver greater airflow in a compact space. Additionally, memory and hard drives have independent cooling fans to keep hardware running at low temperatures while reducing motherboard temperature.

• Note: Original materials do not mention "full-coverage vapor chamber" or "dual turbo fans," so these details are removed.

3. Compact Design with Expandability

• Note: Original materials do not provide specific dimensions (200mm x 80mm x 193mm) or volume (3.1L), so these details are removed.

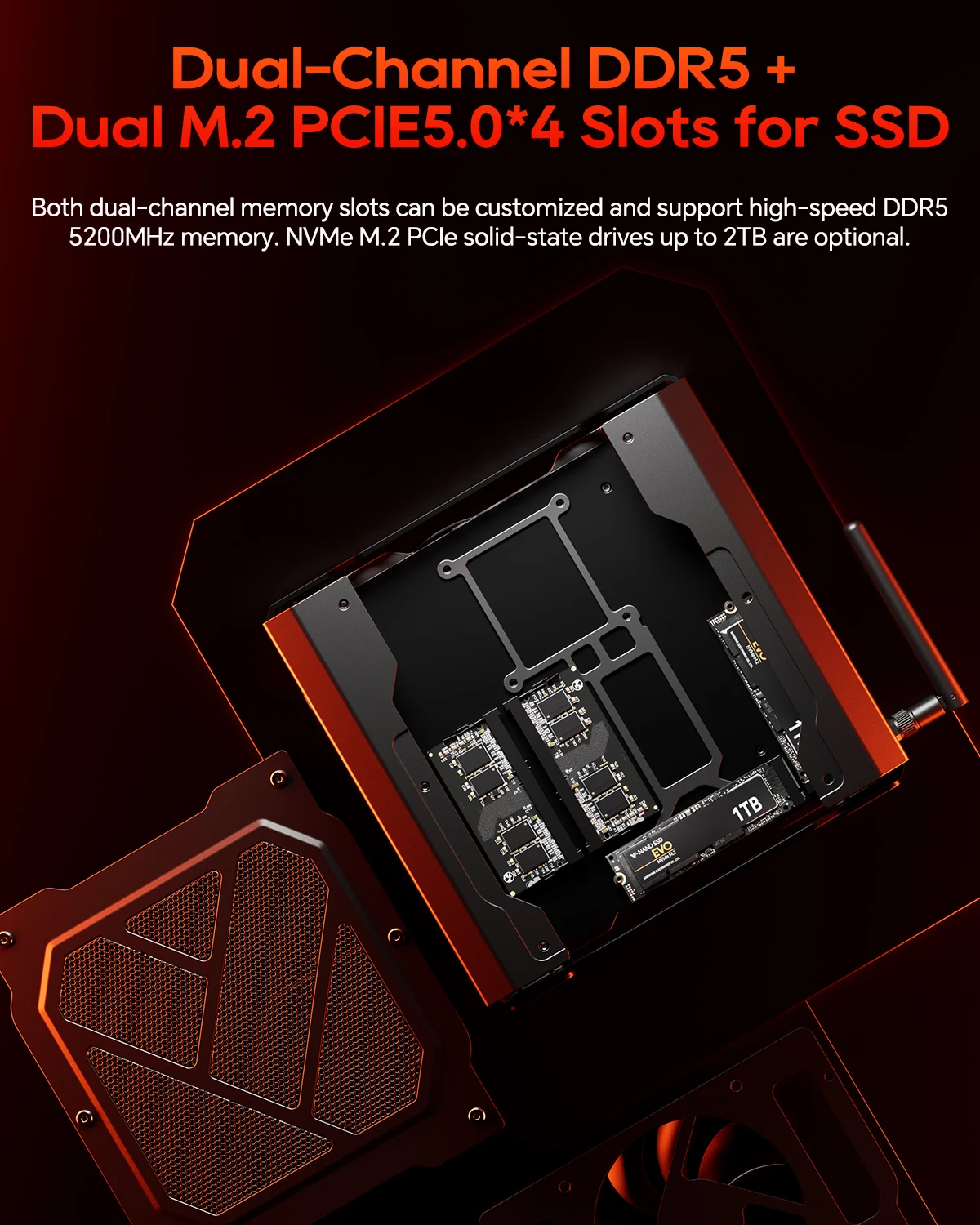

• Memory: Two DDR5-5200MHz SO-DIMM (laptop memory) slots for expansion. Single slot supports up to 32GB, and the system supports a maximum of 64GB dual-channel memory (system memory not included in the barebone version).

• Storage: Two M.2 2280 PCIe 5.0 x4 NVMe SSD slots for high-speed storage. The system supports a maximum of 4TB storage (SSD not included in the barebone version).

4. Rich I/O Connectivity & Display Output

• Display Output: Supports 3-screen 4K 120Hz display output, enabling stable productivity for multi-scenario use such as gaming, design, and office work.

• Front Panel: 1x USB-C (5Gbps, data transmission only), 1x 3.5mm combo audio jack (headphone and microphone). Note: Original materials do not mention "power button" or "1x USB-A 5Gbps" on the front panel, so these details are removed.

• Rear Panel: 1x HDMI, 1x DisplayPort, 1x USB-C (5Gbps, supports display and data transmission), 2x 2.5 Gigabit Ethernet RJ45 ports, 2x USB-A 10Gbps (USB3.2 Gen2), 3x USB-A 5Gbps (USB3.2 Gen1), 1x audio jack, 1x DC-in aviation power connector. Note: Adjusted USB-A quantity and specifications to match original materials; removed "full-function USB-C" description as original only specifies "supports display and data transmission."

• Wireless Connectivity: Pre-installed Wi-Fi 7 wireless card (MT7925B, e-sports exclusive) and Bluetooth. It supports high-bandwidth, low-latency connections—the system can automatically prioritize bandwidth for applications, and users can also set network performance manually. The external antenna is detachable and easy to install.

5. Power Supply

• Uses an external DC power adapter (connected via the rear aviation plug), and the power adapter is included as a gift.

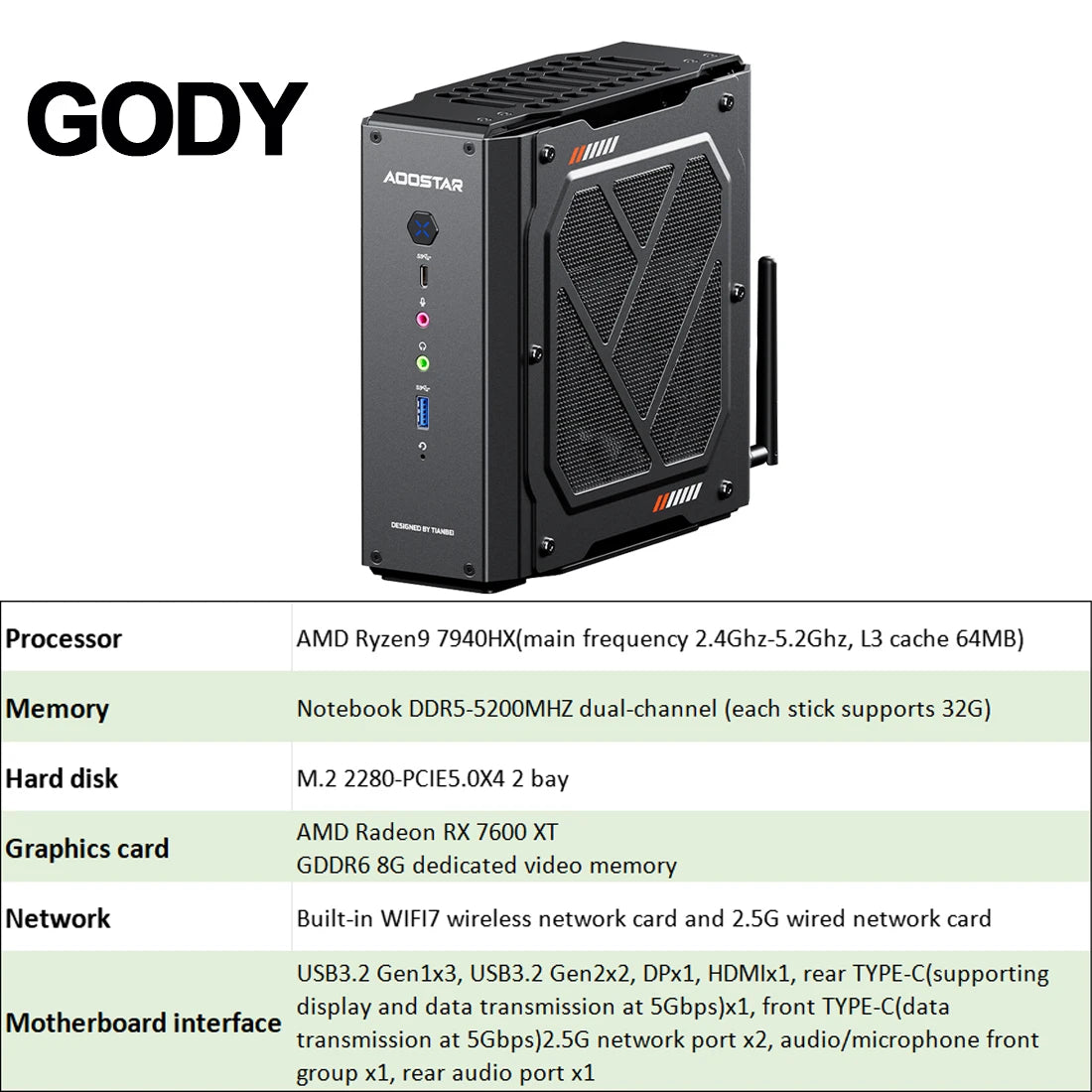

Specification

CPU:AMD Ryzen 9 7940HX (16 cores, 32 threads, up to 5.2GHz boost clock, 64MB L3 cache, 5nm process, optimized sustained performance)

GPU:AMD Radeon RX 7600 XT (8GB 128-bit GDDR6 VRAM, 2048 stream processors, 2755MHz core boost frequency, 150W full-power design, performance > GeForce RTX 4060 (mobile version))

Memory:Dual DDR5-5200MHz SO-DIMM slots (max 64GB; memory not included in barebone version)

Storage:Dual M.2 2280 PCIe 5.0 x4 NVMe SSD slots (max 4TB; SSD not included in barebone version)

Cooling:"Glacier Gaming 4.0" System: 9015 cooling fan (lighter blades, more blades) + independent memory/hard drive cooling fans + open mecha airflow design

Front I/O:1x USB-C (5Gbps, data only), 1x 3.5mm combo audio jack (headphone/microphone)

Rear I/O:1x HDMI, 1x DP, 1x USB-C (5Gbps, display + data), 2x 2.5GbE RJ45, 2x USB-A (10Gbps), 3x USB-A (5Gbps), 1x audio jack, 1x DC-in aviation plug

Wireless:Wi-Fi 7 (MT7925B e-sports card) + Bluetooth (detachable external antenna)

Power Adapter:External DC power adapter (included as a gift, connected via aviation plug)

Packing list：

1XAOOSTAR Mini Pc

1 x power supply

1 xuser manual

1 xHDMl cable

Note:

Our 1100-120V power supply has a wide input voltage range from 100V to 240V. Although the power supply labels 100V-120V, it is safe to work with power source voltages anywhere between 100V to 240V.
